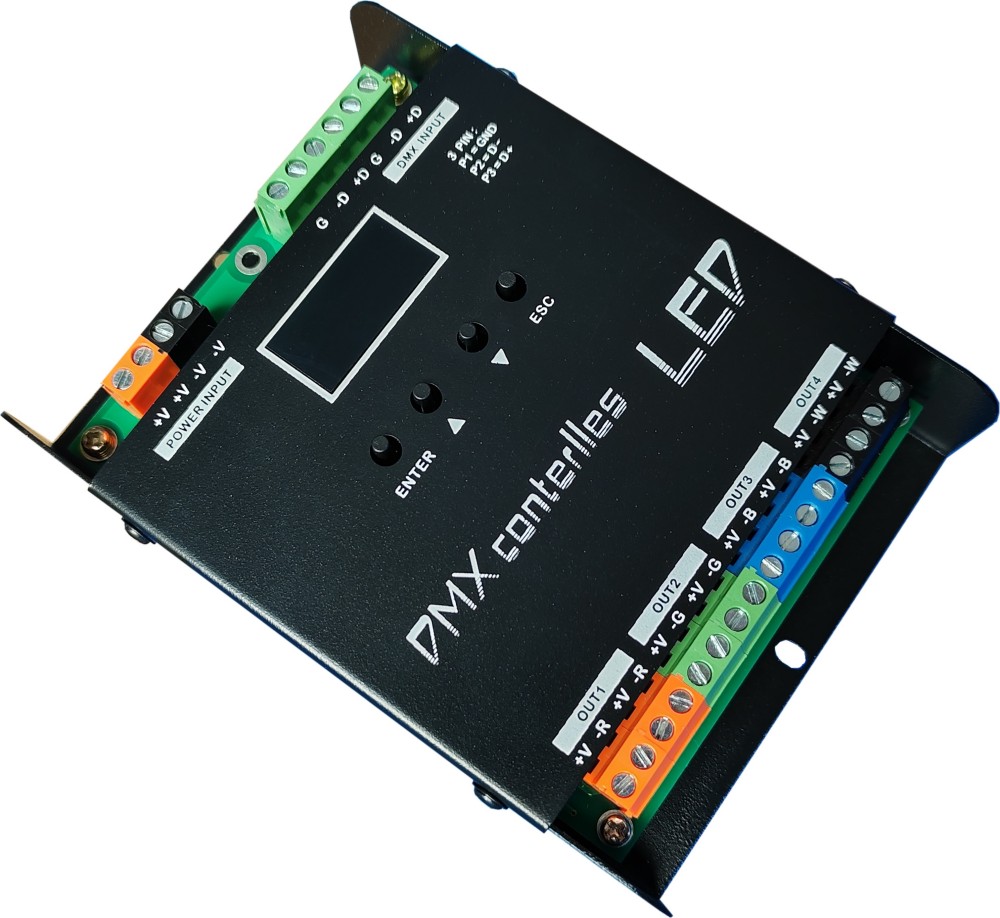

Technical Parameters

1. Input & output power supply: DC12V~30V.

2. Control Signal: standard DMX512/1990 signal transfer.

3. Independent constant current drive module for each channel,

    to make sure the stability of signal output.

4. Full brightness output when DMX512 signal is disconnected.

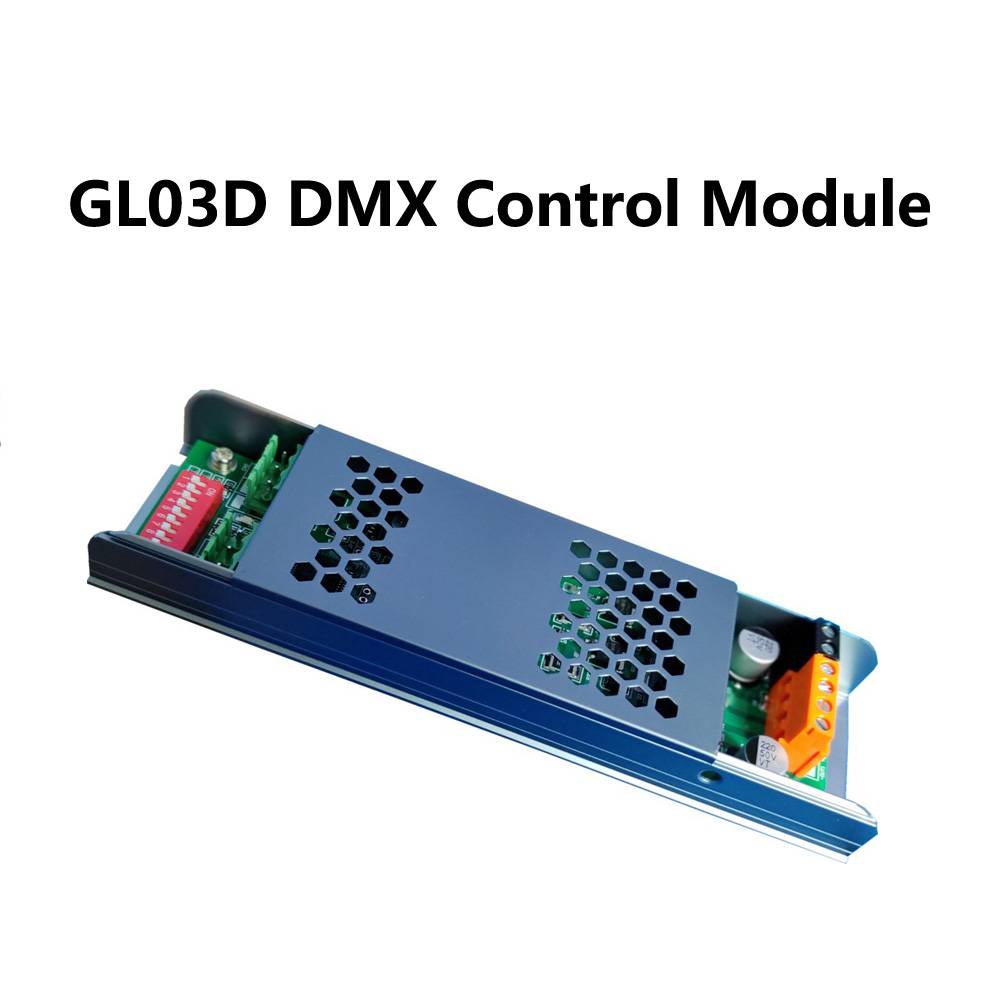

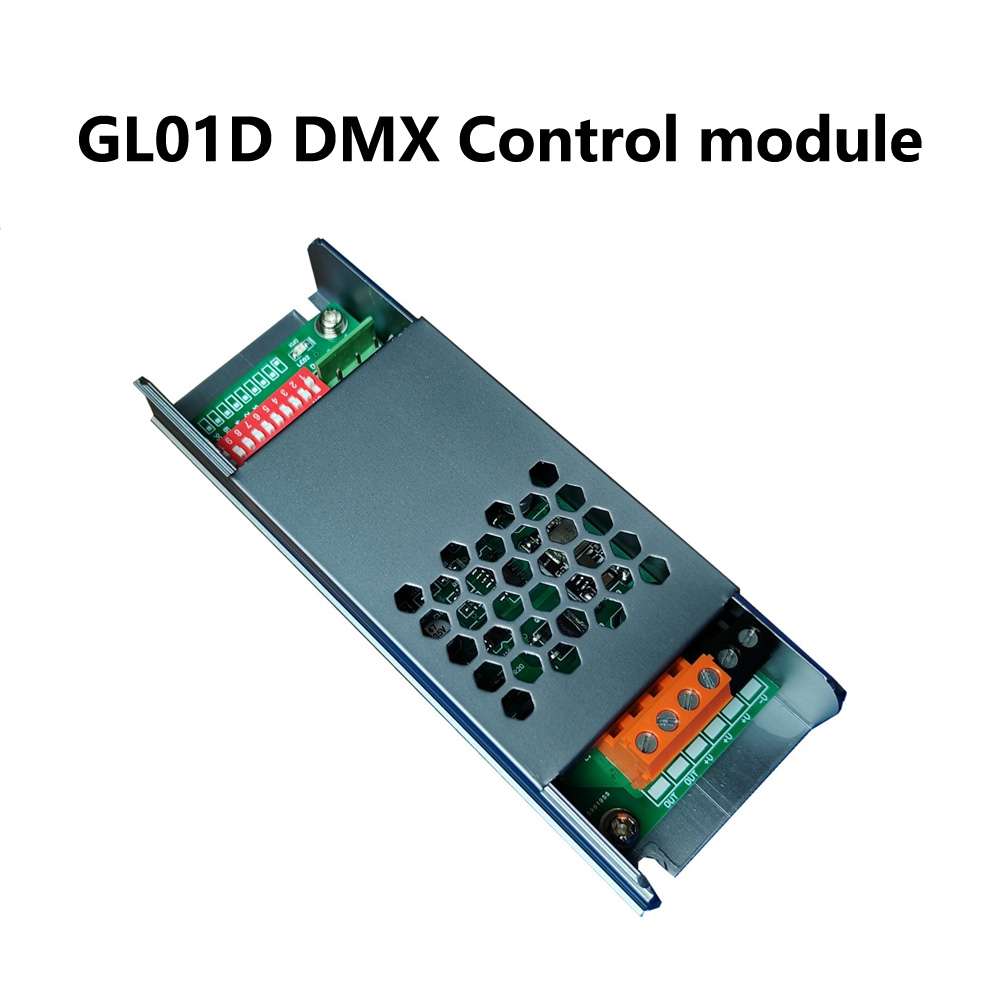

5. Four/Three/One drive output(optional), each with a maixmum capacity of 10A.

6. Product Size: 168mm×125mm×25mm(4 output)

                          178mm×49mm×21mm(3 output)

                          138mm×49mm×21mm(1 output)

7. Application scenarios: Restaurant, meeting room, conference hall and so on,

to stable control the brightness of low voltage LED lights.
